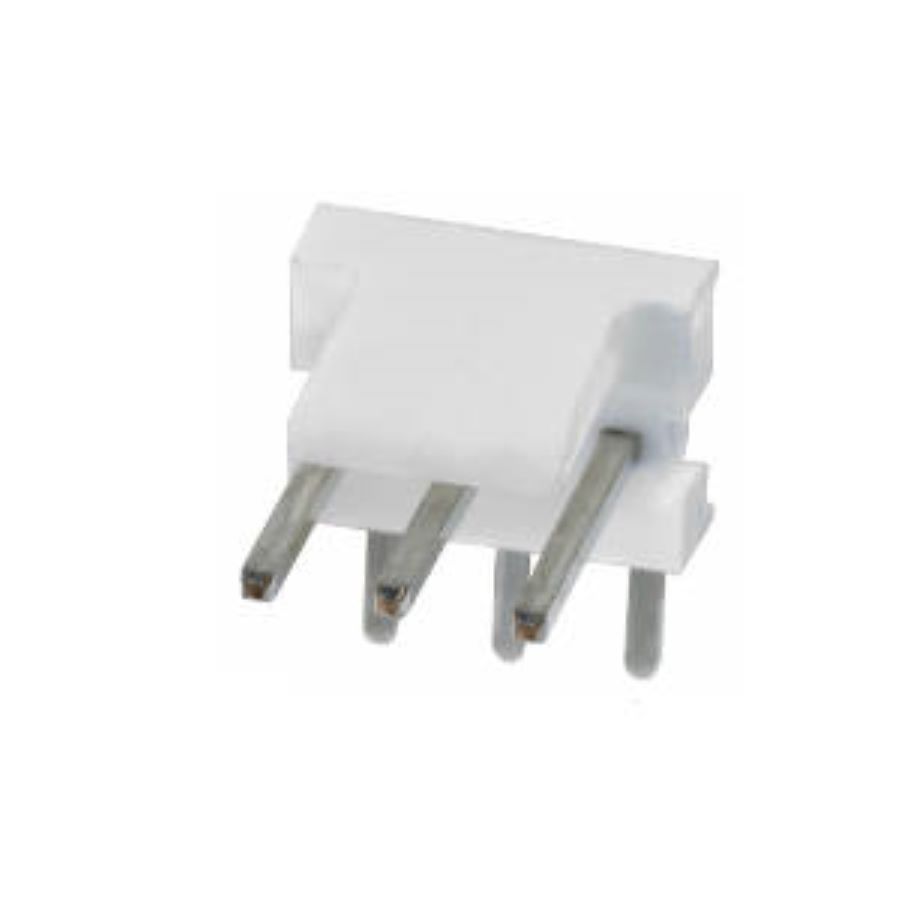

640457-3
Manufacturer:
TE Connectivity
Mfr.Part #:
640457-3
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 10.16 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 3 |
| Height | 7.87 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 11.04 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Lead Length | 3.56 mm |
| Pitch | 2.54 mm |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Beige, Natural, White |
| Gender | Male |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Fastening Type | Friction |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Contact Resistance | 6 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 5 A |
| Housing Color | Natural, White |
| Plating | Tin |
| shrouded | No |
| Contact Mating Length | 7.493 mm |
| PCB Thickness | 1.6002 mm |
| Tail Length | 3.56 mm |
| Plating Thickness | 3.81 µm |
| Contact Gender | Male |
| Mating Post Length | 7.49 mm |
| Contact Shape | Square |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Mating Retention | With |
| Contact Finish Thickness - Mating | 3.81 µm |
| Termination Post Length | 3.56 mm |
Stock: 15019
Distributors
pcbx
pcbxUnit Price$0.11883
Ext.Price$0.11883
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11883 | $0.11883 |
| 10 | $0.10857 | $1.08570 |
| 50 | $0.09140 | $4.57000 |
| 100 | $0.07694 | $7.69400 |
| 500 | $0.07344 | $36.72000 |
| 1000 | $0.07010 | $70.10000 |
| 3000 | $0.06444 | $193.32000 |
| 5000 | $0.05924 | $296.20000 |
| 10000 | $0.05446 | $544.60000 |
